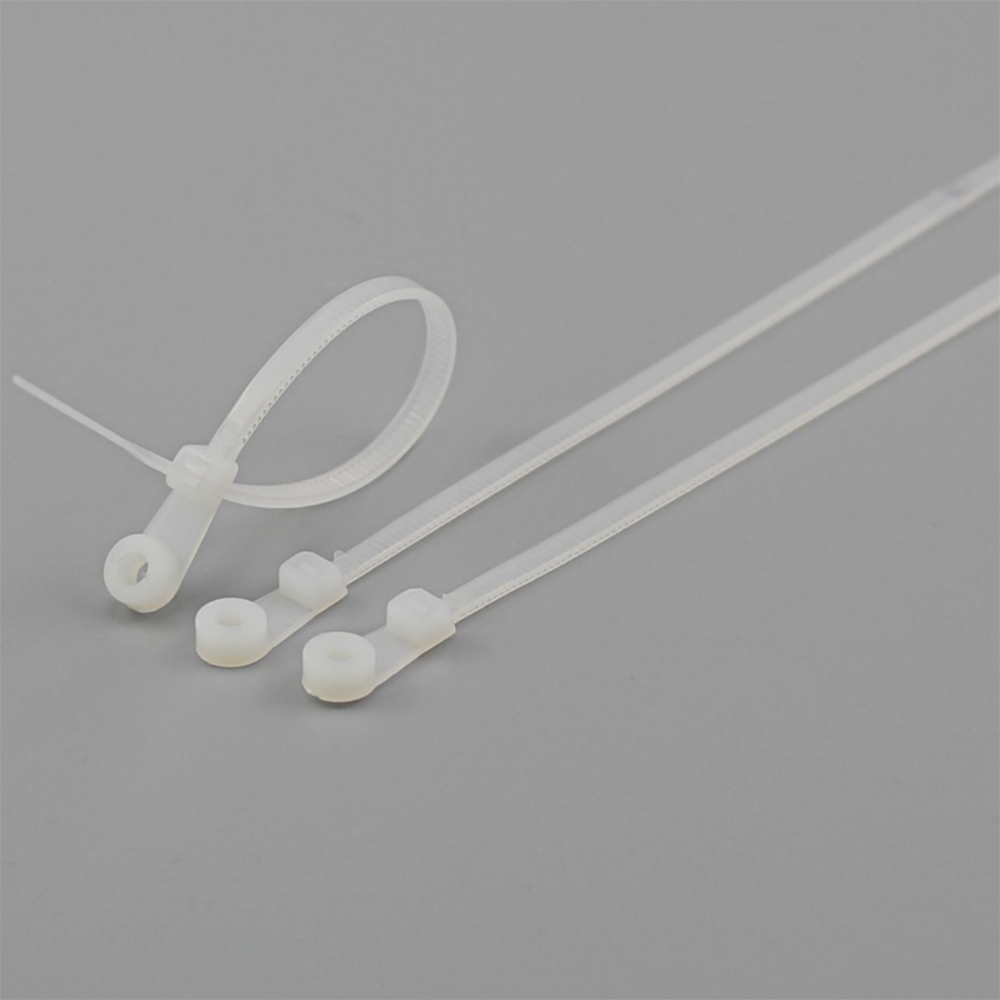

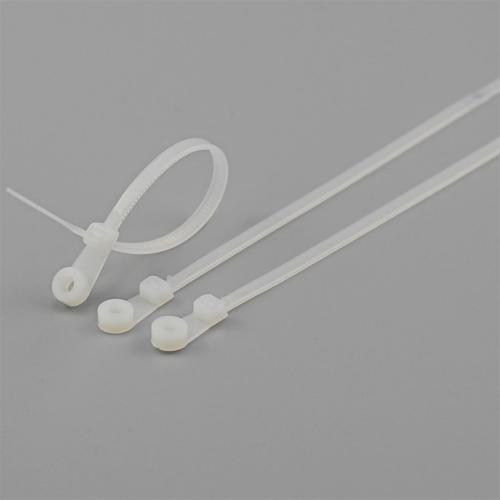

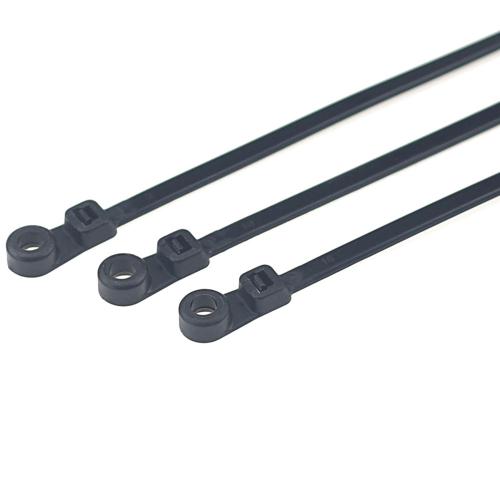

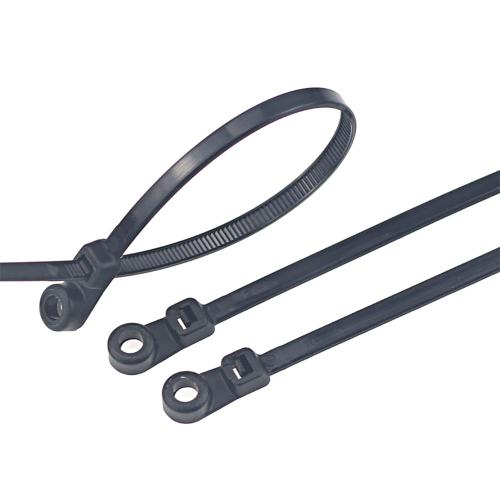

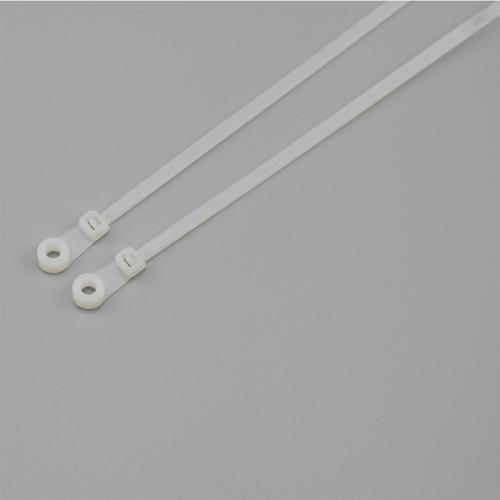

Mountable Head Nylon Cable Ties

item No : LFMH-5 x 200
Size: 4.8 x 200 mm
Width: 4.8 mm (0.192 inch)
Length: 200 mm (8 inches)
Tensile Strength(min): 22 kg (50 lbs)
Bundle diameter: 3 - 50 mm
Material: Nylon 66(PA66)
Flame Class: UL 94V-2
Operation Temp:-35°C~+85°C
Certificates: CE, ROHS, SGS
Color: Nature White or Black

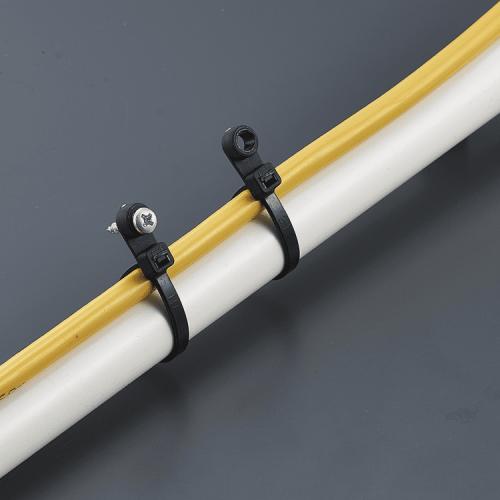

Application Area/Function: After bundling wires,fix them on plate with screw

Description


◆ Material:Nylon 66, 94V-2 certificated by UL. Acid & erosion control, insulate well and not easy to aging、tensile strong.

◆ Usage: After bundling wires, fix them on plate with screw.

◆ Application temperature:-40℃ to 85℃.
◆ Installation temperature:-35℃ to 85℃.
◆ Color: Natural,Black,UV black and other colors are available as requested.
◆ Flexible But Durable: Maximum flexibility of the material and resilient lock design ensure the ideal combination of flexibility and durability, thereby ensuring that these zip-ties are well-suited and convenient for the widest possible range of uses.
◆ Indoor And Outdoor Use: Ideal for both indoor use, as well as the unique challenges presented by the outdoors (including ice, rain, snow, heat and direct sunlight).
◆ Temperature Resistant: Versatile and well suited for use in the widest possible range of temperatures (from -31F to +195F (-35C to +90C))

◆ High Quality Nylon 66: Superior quality, heavy-duty industrial strength material (Nylon 66) guarantees that these zip-ties are stronger than others on the market.


Technical Parameters


Item No.

L

W/MM

Max.Bundle Dia.(mm)

Tensile Strength

INCH

MM

LBS

KGS

LFMH-4×100 4″ 100
3.6
22
40
18
LFMH-4×150 6″ 150
3.6
35
40
18
LFMH-4×200 8″ 200
3.6
50
40
18

LFMH-5×160

6″

160

4.8

35

50

22

LFMH-5×200

8″

200

4.8

50

50

22

LFMH-5×300

12″

300

4.8

80

50

22

LFMH-8×380 15″ 380
7.6
102
120
54
