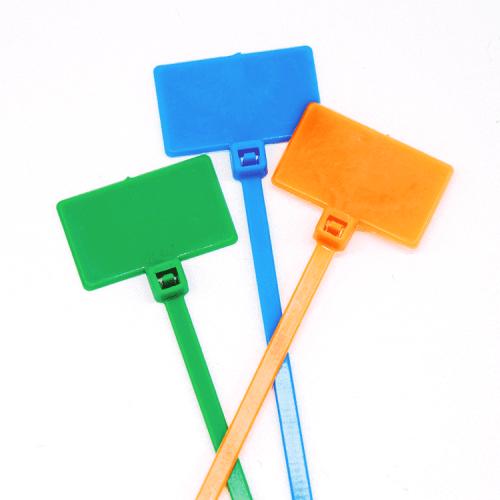

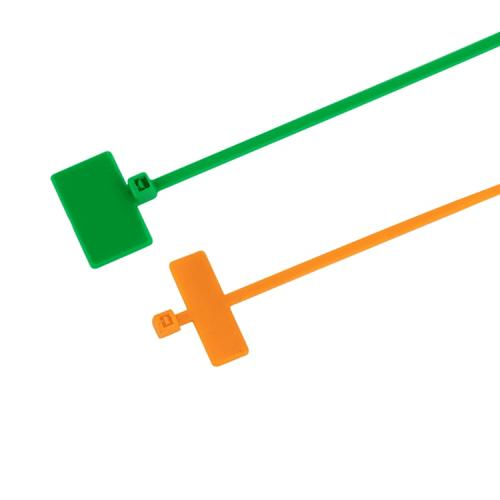

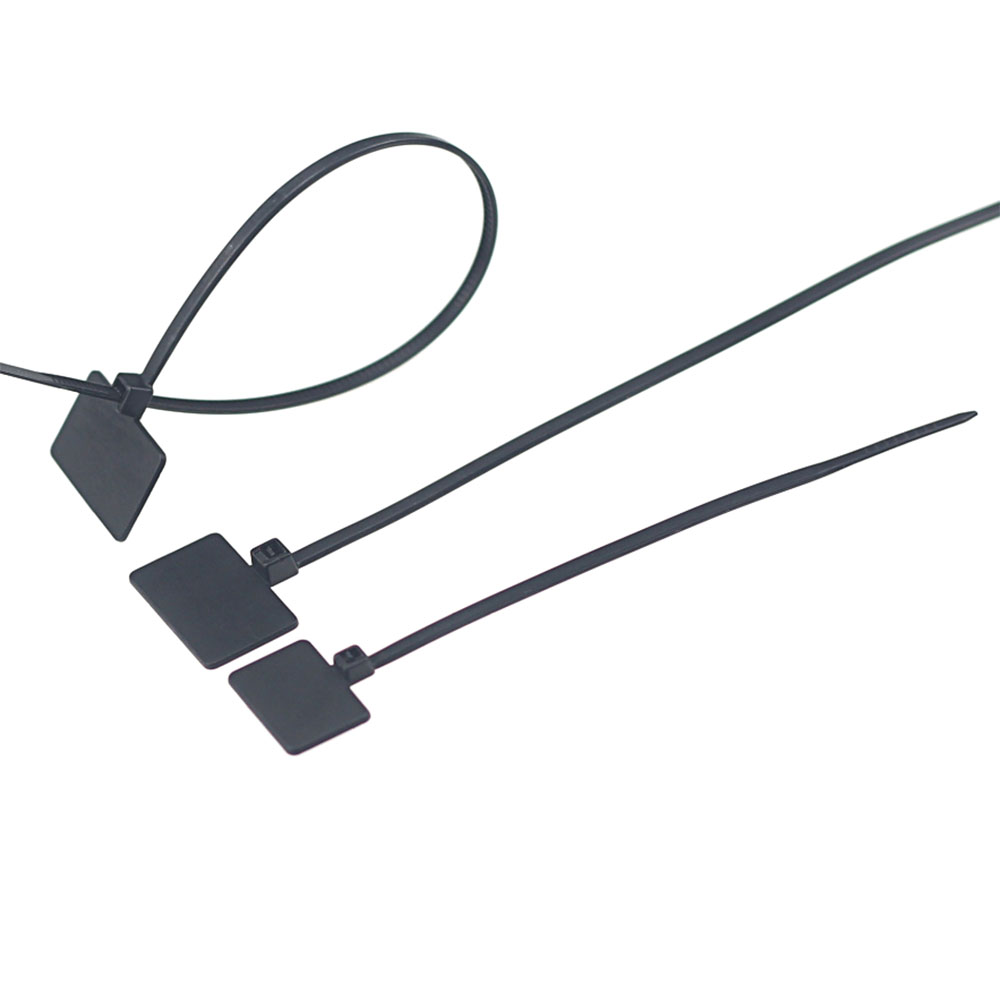

Nylon Material And Self - Locking Type Cable Tie with Marker Tag

item No : LFM-3 x 100
Size: 2.5 x 100 mm
Width: 2.5 mm (0.1 inch)
Length: 100 mm (4 inches)
Tensile Strength(min): 8 kg (18 lbs)
Bundle diameter: 2 - 22 mm
Material: Nylon 66(PA66)
Flame Class: UL 94V-2
Operation Temp:-35°C~+85°C
Certificates: CE, ROHS, SGS
Color: All colors are available

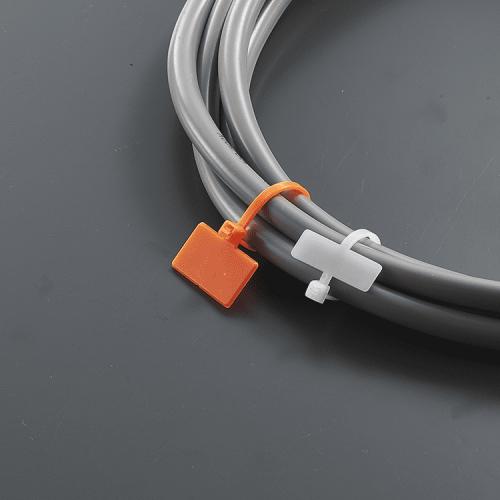

Application Area/Function:For simple identification and securing of cable bundles in one step

Description


◆ Material:Nylon 66, 94V-2 certificated by UL. Acid & erosion control, insulate well and not easy to aging、tensile strong.

◆ Feature: It is easy to mark on the space ar front tip of ties with oil pen.

◆ Application temperature:-40℃ to 85℃.
◆ Installation temperature:-35℃ to 85℃.
◆ Color: Natural,Black,UV black and other colors are available as requested.
◆ Flexible But Durable: Maximum flexibility of the material and resilient lock design ensure the ideal combination of flexibility and durability, thereby ensuring that these zip-ties are well-suited and convenient for the widest possible range of uses.
◆ Indoor And Outdoor Use: Ideal for both indoor use, as well as the unique challenges presented by the outdoors (including ice, rain, snow, heat and direct sunlight).
◆ Temperature Resistant: Versatile and well suited for use in the widest possible range of temperatures (from -31F to +195F (-35C to +90C))

◆ High Quality Nylon 66: Superior quality, heavy-duty industrial strength material (Nylon 66) guarantees that these zip-ties are stronger than others on the market.


Technical Parameters



Item No.

L

W/MM

     Tag Size

Max.Bundle Dia.(mm)

Tensile Strength

INCH

MM

        MM


LBS

KGS

LFT-3×100 4″ 100
2.5
     24 x 12
              22
18
 8
LFT-4×150 6″ 150
3.6
     24 x 14
              35
40
18
LFT-4×200 8″ 200
3.6
     24 x 15
              50
40
18
